The Wacker BS 600 Vibratory Rammer is designed and manufactured by the Wacker Corporation, the leading force in vibratory rammer production. The Wacker BS 600 rammer is designed to compact loose gravel and soil into a firm base for concrete slabs, pavers, foundations and other permanent structures.

This is a versatile tool and one that is perfect for a landscaping job or for larger construction tasks. Here are some operational tips and safety information concerning the BS 600 Vibratory Rammer.

Before Use

The Wacker vibratory rammer requires a 50:1 mix of unleaded gasoline and two-stroke motor oil. Always mix the oil and gasoline together in a separate container before filling the tank. For the appropriate ratio of gasoline to oil, refer to the user manual or talk to one of our assistants at Aspen Rent-All.

Starting up the vibratory rammer

Never start the rammer on hard surfaces such as concrete slabs or asphalt. The rammer will damage these surfaces. Place the tool on loose gravel or soil.

To make the rammer operational, first open the fuel valve. The first time you use the tool, the engine will most likely be cold, so close the choke on the carburetor. Even warm engines will occasionally need to be choked to start up.

Next move the throttle to ¼ or ½ and pull the starter rope until the engine kicks into gear. As the engine warms up, open the choke on the carburetor. Cold engines should warm in the idle position for about a minute, but always open the choke as failure to do so could cause flooding.

How to use a vibratory rammer

For maximum performance, operate the machine in the full throttle position. Never force the rammer forward, guide it by the handle and allow the motion of the machine to pull forward. For maximum compaction, keep the shoe of the BS 600 flat. Running the shoe on the toe or heel will cause excessive wear.

Safety

You should familiarize yourself with all the relevant safety information before using a vibratory hammer. Here are some of the basic operational and service safety procedures you need to know when learning how to use a vibratory rammer.

• Familiarize yourself with the location and proper use of all controls before use.
• Never use the machine for an unintended application.
• Never allow anyone to use the vibratory hammer without the appropriate training.
• Never leave the rammer running unattended.
• Never use the choke to stop the engine.
• Always wear the appropriate safety gear: hearing protection, eye protection, etc.
• Always keep hands, feet, and clothing clear from moving parts.
• Never use the rammer in such a way that will place the operator between the machine and a solid object.
• Take extra care when operating on uneven ground and stand in a firm position.
• Always close the fuel value when machine is not operational.
• Always make sure that the engine is off when the rammer is not being operated.
• Before use, check fuel lines and fuel tank for leaks or cracks.
• Do not smoke when using or refilling the rammer.
• Do not operate the machine without an air cleaner.
• Never attempt to perform maintenance while the vibratory rammer is still in use.
• Always make sure the safety guards and devices are in place prior to operation, especially after repairs or maintenance.
• Always clean debris from the cooling fins.

Trouble Shooting

When using your vibratory rammer you may encounter some performance issues. Here are the most common issues and the potential solutions to the problems.

Engine stall or does not start

• Check fuel level in tank.
• Check that the fuel valve is open.
• Check condition of spark plug.

Engine overheats

• Incorrect mix: add more oil.
• Check condition of fan blades and cooling fins.

Engine runs, but rammer does not function

• Inspect clutch of damage. Replace is necessary.
• Check compression and exhaust port.
• Check for a broken connecting rod or crankgear.

Engine runs, rammer is erratic

• Check for dirt build up on shoe.
• Lower engine speed.
• Check for oil or grease on clutch.
• Check for damaged crankcase or ramming system.
• Check condition of springs.

The specs

• Engine Model: WM80
• Engine Speed Full rpm: 4350 ± 100
• Engine Speed Idle rpm: 1800 ± 100
• Clutch Engagement: rpm 2800 ± 100
• Spark Plug: Champion RL95YC
• Electrode Gap mm (in.): 0.8–0.9 (0.035)
• Cylinder Head Compression (cold) (bar/cm3 (psi): 8.0–9.7 (120–140)
• Air Cleaner: Dual Element
• Engine Lubrication: oil grade With standard two-cycle oil – use 50:1 ratio.
• Ramming System Lubrication: oil grade SAE 10W30
• Ramming System Capacity ml (oz.): 890 (30)

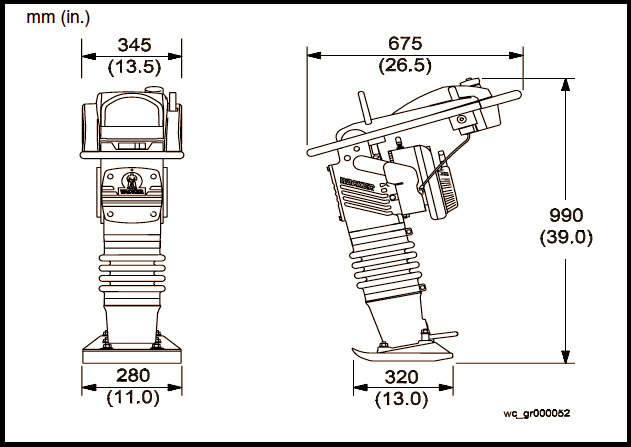

Dimensions

For more information on the BS 600 Vibratory Rammer, contact us online or over the phone on 970-925-3285.

To book a rammer for your next job, head over to our BS 600 Vibratory Rammer rental reservation page.
