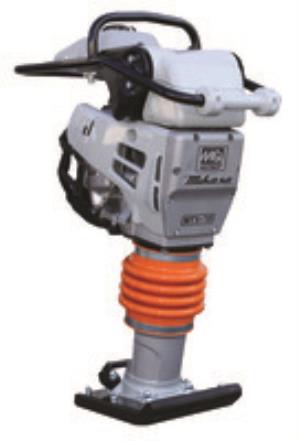

RAMMER-JUMPING JACK COMPACTOR

Rental Equipment Rental Equipment > Compactors > RAMMER-JUMPING JACK COMPACTOR Rental

RENTAL RATES

These rammers are designed for the compaction of cohesive, mixed and granular soils in confined areas. Ideally suited for compaction of backfill around foundations and forms, subgrades underneath footings and base preparation for concrete work such as slabs, curbs and gutters. Also useful for various utility and municipality related jobsites for compaction over pipelines, gas and cable trenches and base preparation for patching of streets and sidewalks.

Features / Specifications

Unit Specifications
Blows Per Min.	Up to 690*
Impact Force	3,350 lbf	1520 kgf
Shoe Jump Height	3.1 in	79 mm
Shoe Dimensions (LxW)	13.4 x 11.2 in 340 x 285 mm
Travel Speed Per Min.	55.8 ft	17 m
Fuel Tank Capacity	2.7 qt	2.5 L

Dimensions & Weights
Overall Length	31.0 in	788 mm
Overall Width	13.8 in	350 mm
Overall Height	40.4 in	1027 mm
Operating Weight	165 lb	75 kg

Engine Specifications
Engine Make/Model	Honda GX100
Start Method	Recoil
Engine Power	2.8 HP	2.1 kW
Engine RPM	4,100
Fuel Type	Gasoline
